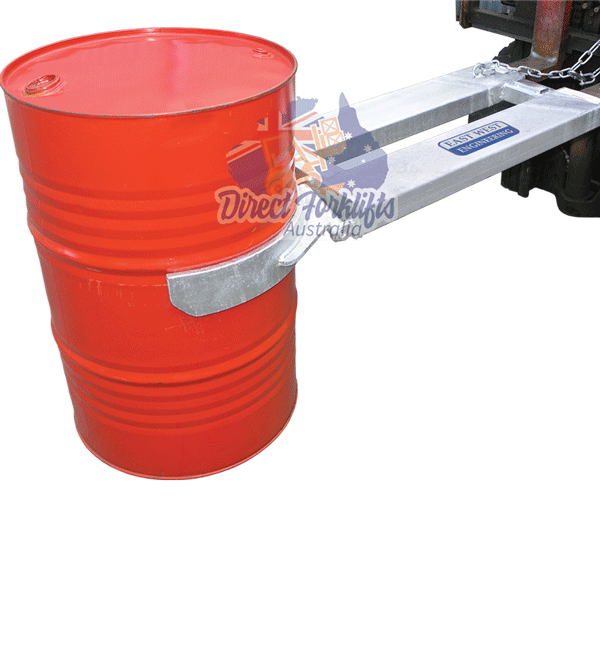

DLM50 Drum Lifter

Overview

The DLM50 Drum Lifter is designed to automatically clamp a standard 205 litre steel drum and safely place it without the operator leaving the driver’s seat. The drum is gripped by pushing the arms against the drum centre and driving the forklift forward. When raised, the engaged arms will lock under the rolling hoop. The heavier the load, the tighter the grip becomes. To release, simply lower the drum to the ground and reverse the forklift.

FEATURES:

• Automatic clamping action

• Operator can safely and precisely place drums without leaving their seat

• Zinc

Specifications

 finish Working Load Limit (WLL)                500kg

 Load Centre                                                   1340mm

 Unit Weight                                                    65kg

 Fork Pocket Size                                            185 x 65mm

Fork Pocket Centres                                     300mm.

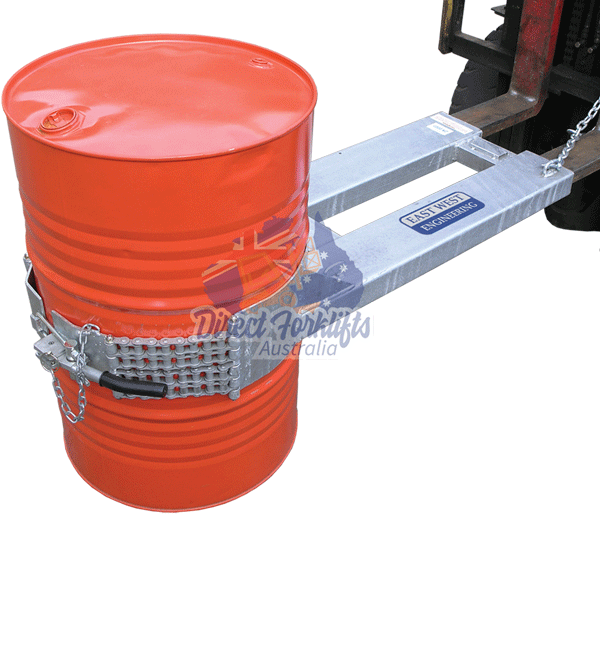

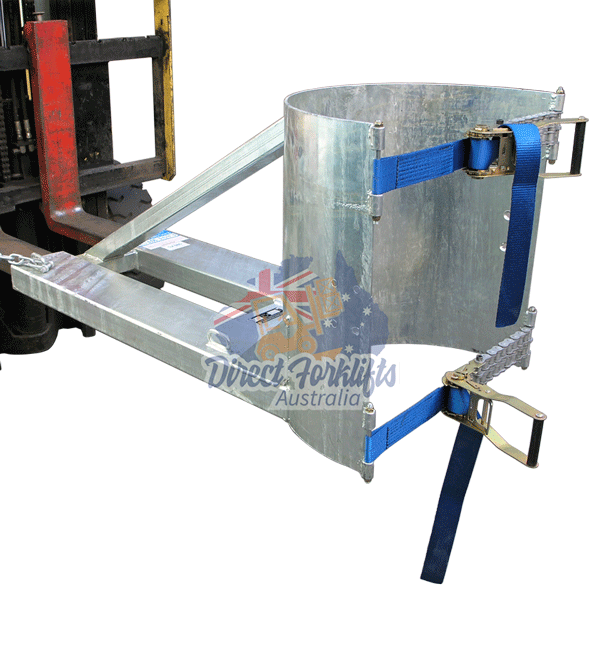

 The DL1000 Drum Lifter

Overview

The DL1000 Drum Lifter is designed to safely lift and transport standard 205 litre drums around the worksite.

FEATURES:

• Ensures drums are moved with 100% security

• Suits standard 205 litre steel drums

• Can be coupled with the PBO Plastic Barrel Option (DL1000PBO)

• Belly strap and eccentric lock secures drum in position

• Safety catch prevents accidental release

• Slip-on attachment allows quick connection to a forklift

• Zinc finish

Plastic Barrel Option (PBO):

By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg.

Specifications

 Model                                               DL100                                              DL1000-PBO

 Working Load Limit (kg)               1000Kg                                                      350KG

 Fork Pocket Size (mm)                  165x65mm                                       165×65 mm

 Fork Pocket Centres (mm)            335mm                                             335 mm

Load Centres (mm)                         1160mm nominal                           1160mm Nominal

Unit Weight (kg)                             65Kg                                                   75 Kg

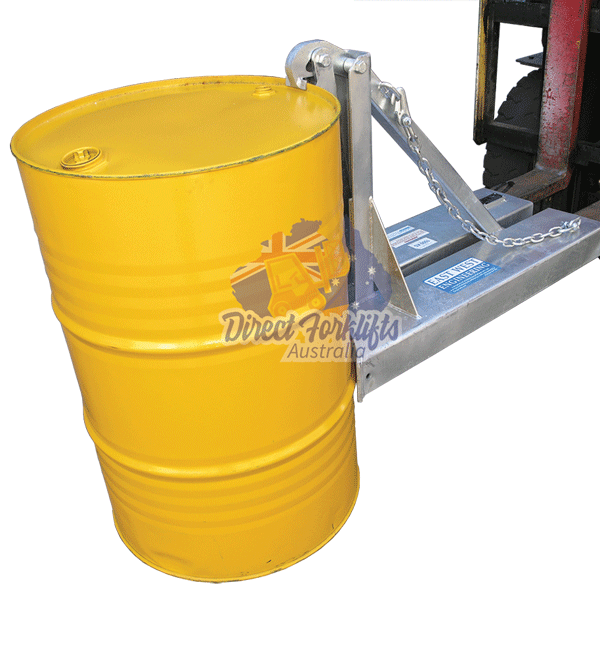

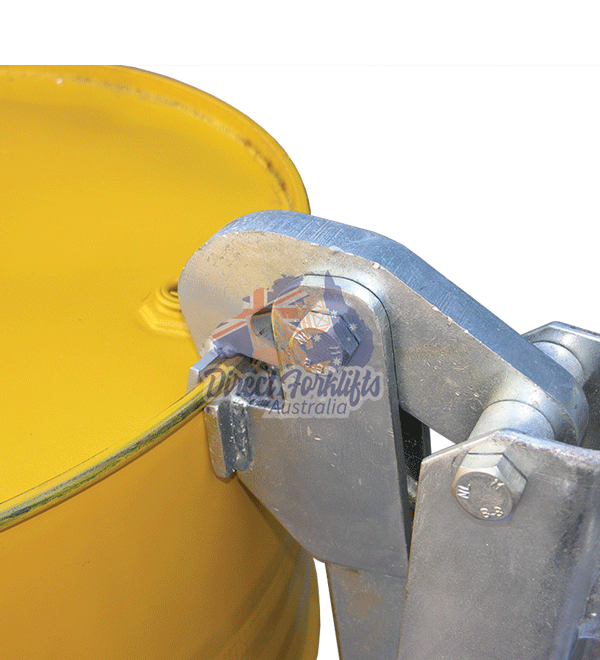

BGN-1 Single Drum Lifter

Overview

The BGN-1 Single Drum Lifter is a unique beak style drum lifter designed for the easy handling of standard 205 litre drums.

FEATURES:
• Unique beak design provides a high clamping force
• Suits a standard 205 litre steel and some plastic drums
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish

Working Load Limit (WLL) – 1000kg

Load Centre – 1210mm

Unit Weight – 72kg

Fork pocket size – 185 x 60mm

Fork Pocket Centres – 250mm

BGN-2 Double Drum Lifter

Overview

The BGN-2 Double Drum Lifter is a unique beak style drum lifter designed for the easy handling of two standard 205 litre drums side by side or a single drum.

FEATURES:
• Unique beak design provides a high clamping force
• Lifts one or two standard 205 litre steel and some plastic drums at the same time
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish

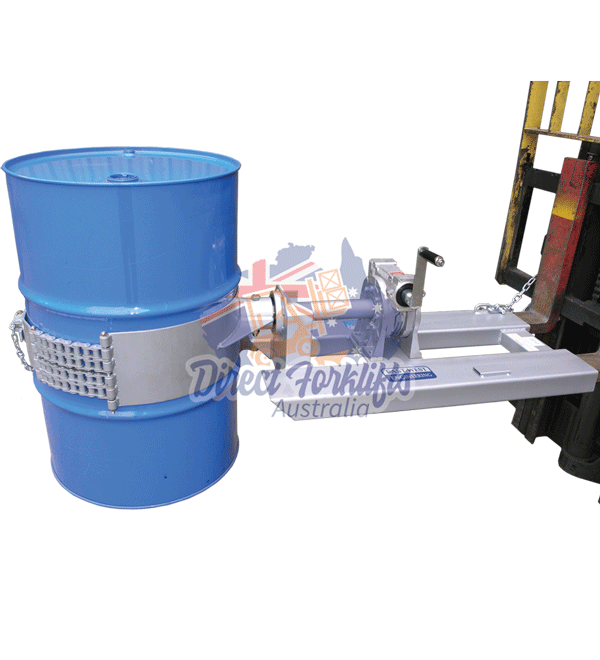

SW-NH Sideways Drum Rotator

Overview

The SW-NH Sideways Drum Rotator is designed to lift a 205 litre drum at a sideways direction to the forklift and rotate 360 degrees. Rotation of the drum is controlled through the gear box via a hand wheel, allowing the entire contents of the drum to be tipped.

FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Hand wheel is used to rotate the drum, ideal for lowered loads
• Gearbox allows full control of rotation
• Belly strap and eccentric lock secures drum in position
• Slip-on attachment allows quick connection to a narrow carriage forklift
• Can be coupled with the PBO Plastic Barrel Option
• Enamel paint finish

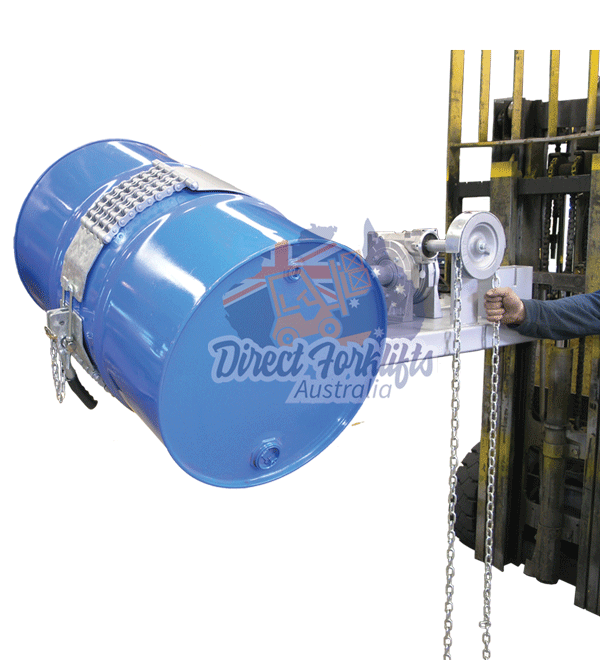

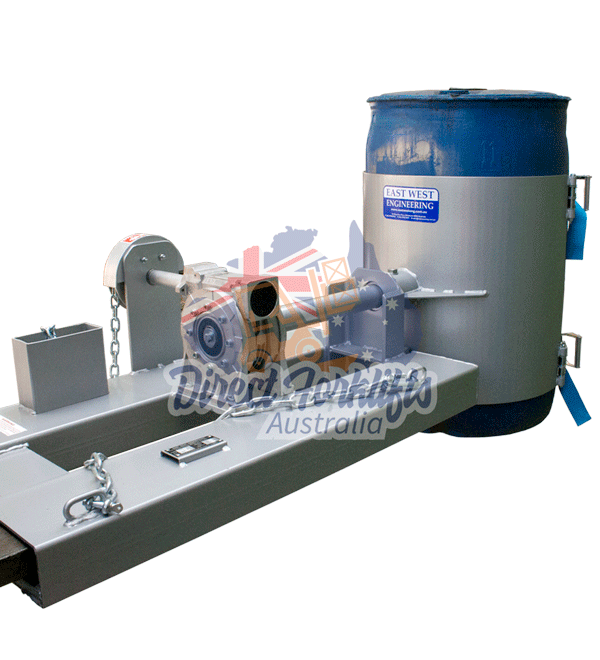

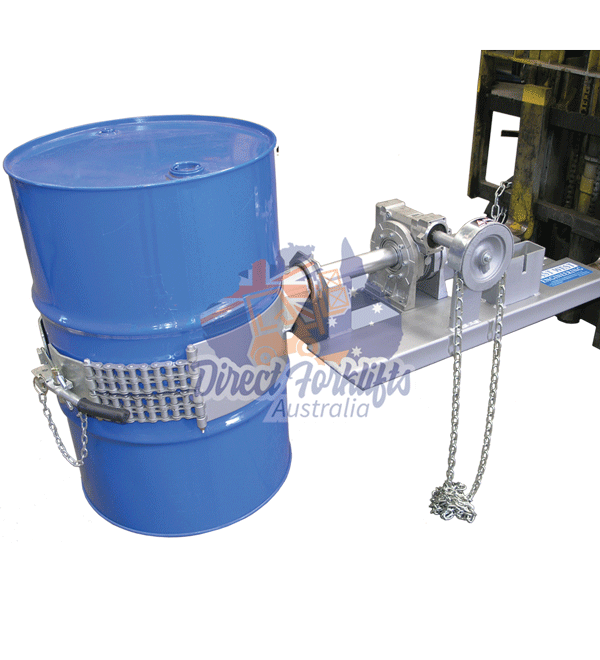

SW-NC Sideways Drum Rotator

Overview

The SW-NC Sideways Drum Rotator is designed to lift a 205 litre drum at a sideways direction to the forklift and rotate 360 degrees. Rotation of the drum is controlled through the gear box via a hand chain, allowing the entire contents of the drum to be tipped.

FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Hand chain is used to rotate the drum, ideal for elevated loads
• Gearbox allows full control of rotation
• Belly strap and eccentric lock secures drum in position
• Slip-on attachment allows quick connection to a narrow carriage forklift
• Can be coupled with the PBO Plastic Barrel Option
• Enamel paint finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

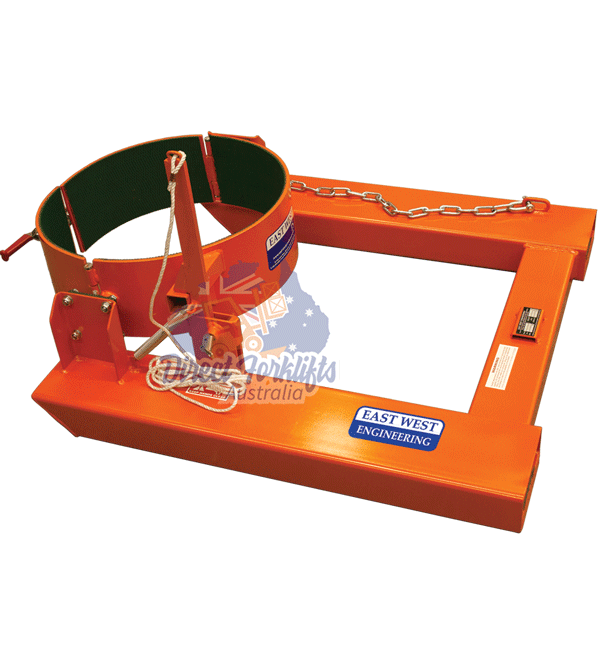

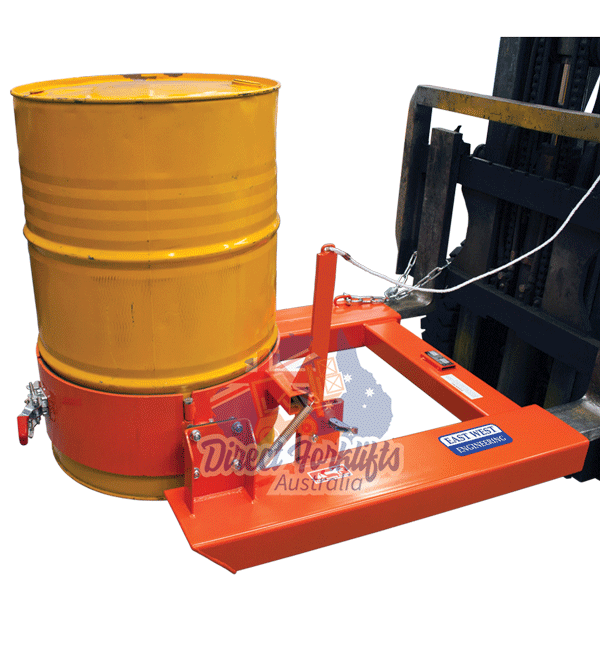

DRU50 Drum Dumper

Overview

The DRU50 Drum Dumper is designed for fast and economical emptying of standard 205 litre drums.

FEATURES:
• Ideal for dumping operation of waste and scrap products
• Suits a standard 205 litre drum
• Belly strap and eccentric lock secures drum in position
• Pull cord mechanism activated safety from driver’s seat
• 180° rotation of drum
• Slip-on attachment allows quick connection to a forklift
• Enamel paint finish

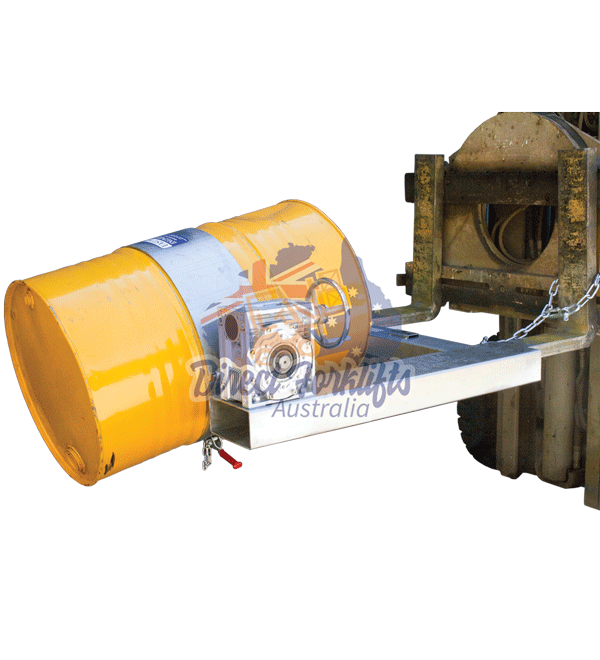

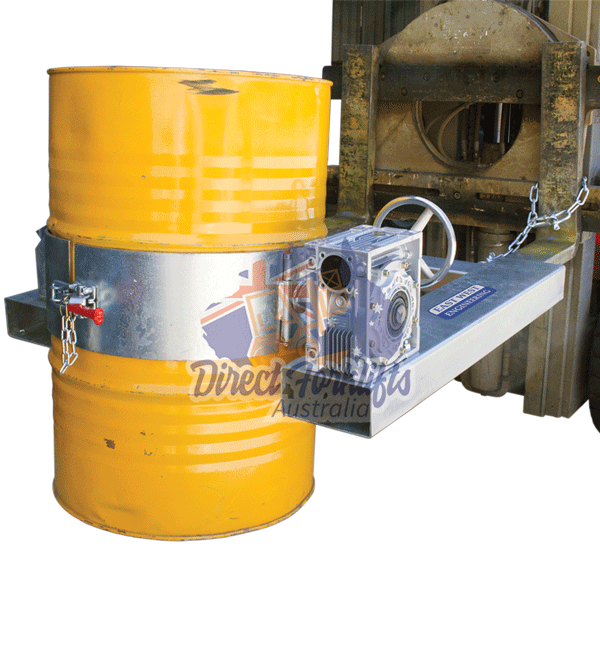

DER40H Drum Rotator

Overview

The DER40H Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops turning the handle, preventing dangerous and uncontrolled movements.

FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation when raised up to chest height
• Rotation carried out via a hand wheel
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

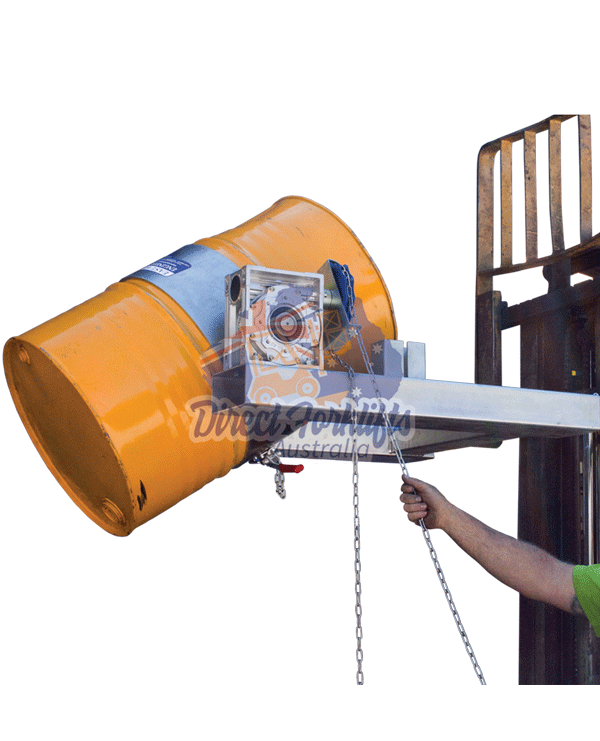

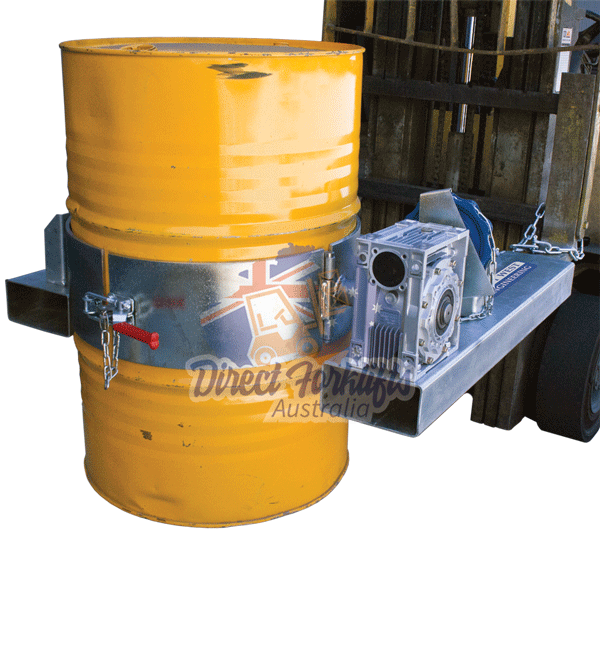

DER40C Drum Rotator

Overview

The DER40C Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements.

FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via a hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

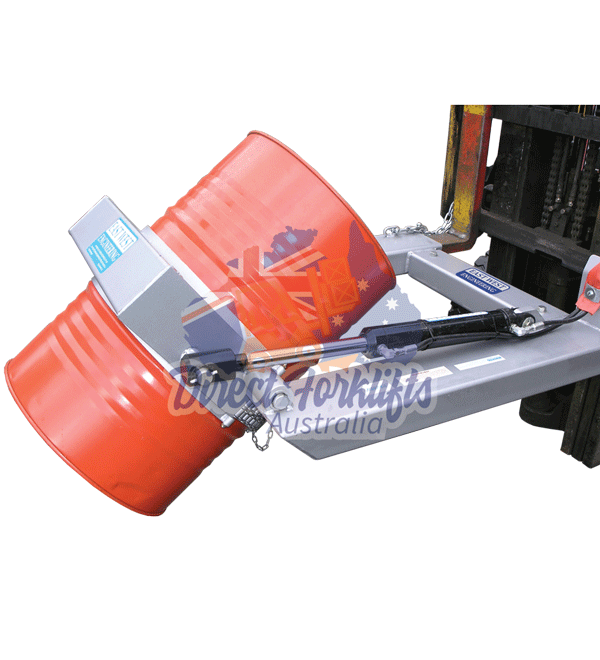

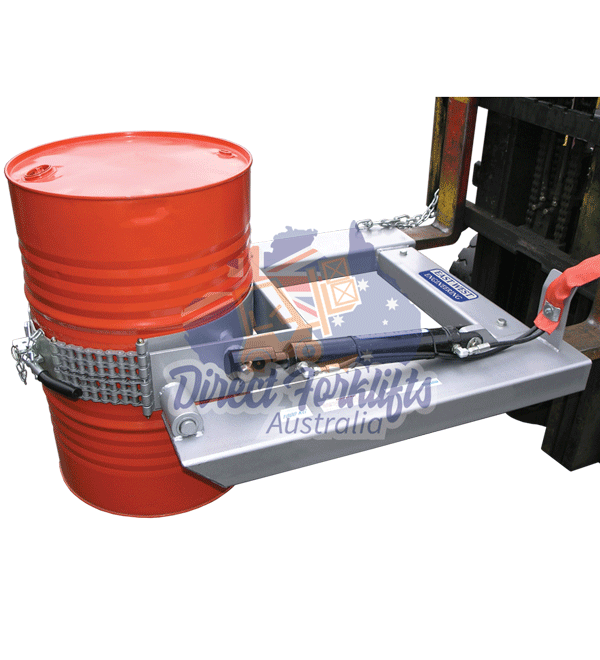

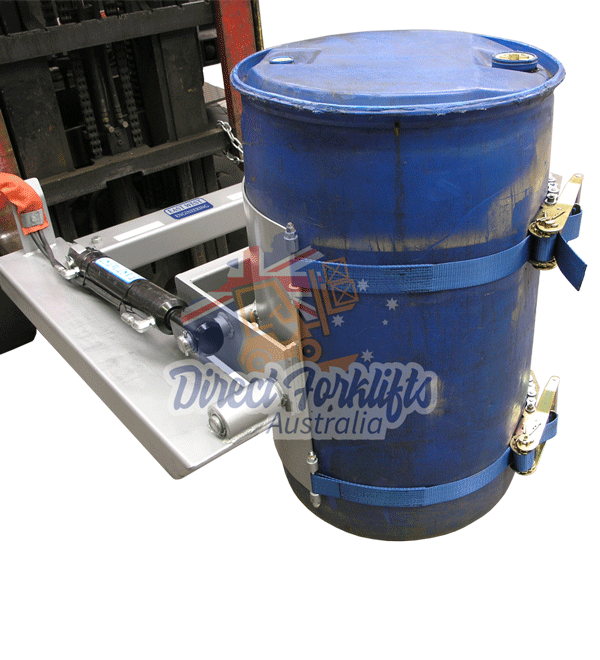

DC-R2 Hydraulic Drum Rotator

Overview

The DC-R2 Hydraulic Drum Rotator is a heavy-duty 205 litre drum lifter with hydraulic rotation ability, allowing the safe and reliable emptying of drums.

FEATURES:
• Use with existing forklift to lift and rotate a drum 130 degrees, allowing for emptying of product
• Allows safe transport of drums around the worksite
• Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
• Belly strap and eccentric lock secures drum in position
• Rotation provided by forklift hydraulics and controlled by the 3rd function lever
• Slip-on attachment and quick connect hydraulic couplings allows quick connection to a forklift
• Commonly used in the food processing, recycling and mining industry
• Enamel paint finish

DC-GR2 Hydraulic Drum Rotator

Overview

The DC-GR2 Hydraulic Drum Rotator is a heavy-duty 205 litre drum lifter with hydraulic grab/rotation ability, allowing the safe and reliable emptying of drums.  This unit can pick a single drum from a pallet of 4 without disturbing the other 3.

FEATURES:
• Use with existing forklift to grab, lift and rotate a drum 130 degrees, allowing for emptying of product
• Allows safe transport of drums around the worksite
• Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
• Rotation provided by forklift hydraulics and controlled by the 3rd and 4th function lever
• Slip-on attachment and quick connect hydraulic couplings allows quick connection to a forklift
• Commonly used in the food processing, recycling and mining industry
• Enamel paint finish

DC-GR2-HPP Hydraulic Drum Rotator

Overview

TheDC-GR2-HPP Hydraulic Drum Rotator is fitted with a self contained battery/electric operated hydraulic power pack (HPP) to hydraulically grab, lift and rotate a 205 litre drum, allowing the safe and reliable emptying of drums without the need to connect to the forklift hydraulic system.  This unit can pick a single drum from a pallet of 4, without disturbing the other 3.

FEATURES:
• Use with existing forklift to grab, lift and rotate a drum 130 degrees, allowing for emptying of product
• Allows safe transport of drums around the worksite
• Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
• Fitted hydraulic power pack eliminates the need to connect to forklifts hydraulic system
• Operation of the attachment is via a remote controlled pendant
• Slip-on attachment allows quick connection to a forklift
• Commonly used in the food processing, recycling and mining industry
• Enamel paint finish

HYDRAULIC POWER PACK (HPP) FEATURES:
• Remotely controlled pendant (50m distance range) with spare pendant supplied
• 12-Volt DC Hydraulic Pump
• Battery & battery charger
• Robust cabinet box protects all components
• Quality hydraulic components
• Incorporated safety features include a two-button opening function and emergency stop
• 180 AMP fuse protects the electrical circuit whilst a secondary 10 AMP fuse adds further protection to the remote control system & solenoid coils
